| Cell Orientation | 132[6x22] |
| Weight | 37.9kg |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68,3 diodes |
| Wind /Snow Load | 2400Pa/5400Pa |
| Packaging | 33pcs per pallet, 594pcs per 40’HC |
| Power Range | 700W, 705W, 710W, 715W, 720W |
| Maximum Power:Pmax[W] | 700 | 705 | 710 | 715 | 720 |
| Open Circuit Voltage:Voc[V] | 48.60 | 48.77 | 48.94 | 49.11 | 49.28 |
| Short Circuit Current:lsc[A] | 18.35 | 18.40 | 18.45 | 18.50 | 18.55 |
| Voltage at Maximum Power:Vmp[V] | 40.35 | 40.52 | 40.69 | 40.86 | 41.03 |
| Current at Maximum Power:lmp[A] | 17.35 | 17.40 | 17.45 | 17.50 | 17.55 |
| Module Efficiency: η [%] | 22.5 | 22.7 | 22.9 | 23.0 | 23.2 |
| Maximum Power:Pmax[W] | 526 | 530 | 534 | 538 | 541 |
| Open Circuit Voltage:Voc[V] | 46.17 | 46.33 | 46.49 | 46.65 | 46.82 |
| Short Circuit Current:lsc[A] | 14.82 | 14.86 | 14.90 | 14.94 | 14.98 |
| Voltage at Maximum Power:Vmp[V] | 37.55 | 37.73 | 37.90 | 38.08 | 38.18 |
| Current at Maximum Power:lmp[A] | 14.01 | 14.05 | 14.09 | 14.13 | 14.17 |
| Name | Size | Thumbnail | Download |
|---|---|---|---|

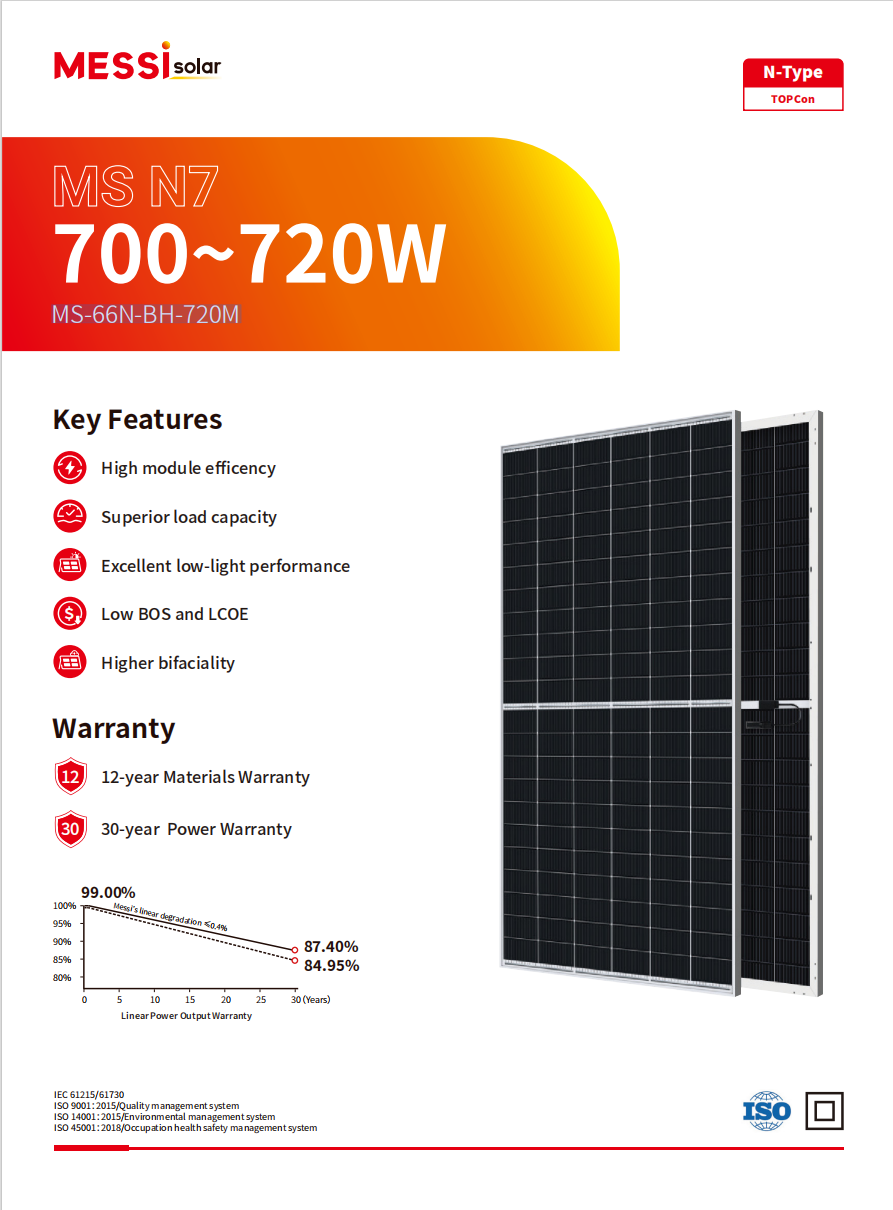

| N-Type 700W-720W Solar Panel | 1.50MB |  | Download |

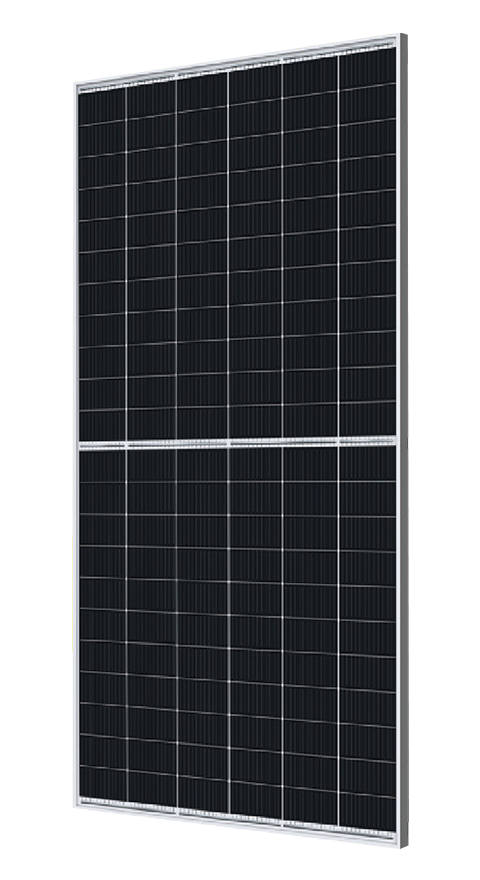

The N-type 720W Bifacial Solar Module is a high-performance solar panel manufactured by Messi Solar. It is a monocrystalline panel that offers a maximum power output of up to 720 watts, making it one of the most powerful panels on the market. With an efficiency of up to 23.2%, this panel is designed to deliver maximum performance in all weather conditions. The panel’s frame is made of anodized aluminum, which is resistant to corrosion and can withstand heavy loads of wind and snow. It is also equipped with an IP68-rated junction box that provides long-term weather endurance. The N-type 720W Bifacial Full-Black Module is an excellent choice for residential and commercial applications where high power output and long-term performance are required.
The N-type 720W Bifacial Solar Panel boasts an impressive efficiency rate of up to 23.2%. This high efficiency ensures that the panel converts more sunlight into usable electricity, maximizing energy production even in limited space. Its advanced monocrystalline technology reduces energy losses, enabling better overall system performance compared to standard modules.
Designed to withstand harsh environmental conditions, this solar panel features superior load capacity. It can endure heavy snow loads and high wind pressures, making it suitable for diverse installation environments, including areas prone to extreme weather. The robust frame and durable construction ensure long-term reliability and reduce maintenance costs.
Thanks to its advanced cell structure, the panel delivers excellent low-light performance. It can generate significant energy even on cloudy or overcast days, or during early mornings and late evenings when sunlight is less intense. This ensures a consistent power output, providing greater energy yield over time.
With its high output and advanced efficiency, the N-type Bifacial Module reduces Balance of System (BOS) costs and Levelized Cost of Energy (LCOE). Fewer panels are required to meet energy needs, lowering installation and operational costs. The long lifespan and superior performance also reduce the overall cost of energy production, making it an economical choice for both residential and commercial solar systems.
The bifacial design of this module allows it to capture sunlight from both sides, increasing energy generation by up to 30%. With a higher bifaciality rate, the panel is ideal for installations with reflective surfaces, such as rooftops or ground-mounted systems. This feature maximizes energy output, especially in locations with higher levels of ground reflection, ultimately leading to higher energy yields.
